Buchholz relay
2013-11-24 23:02:02

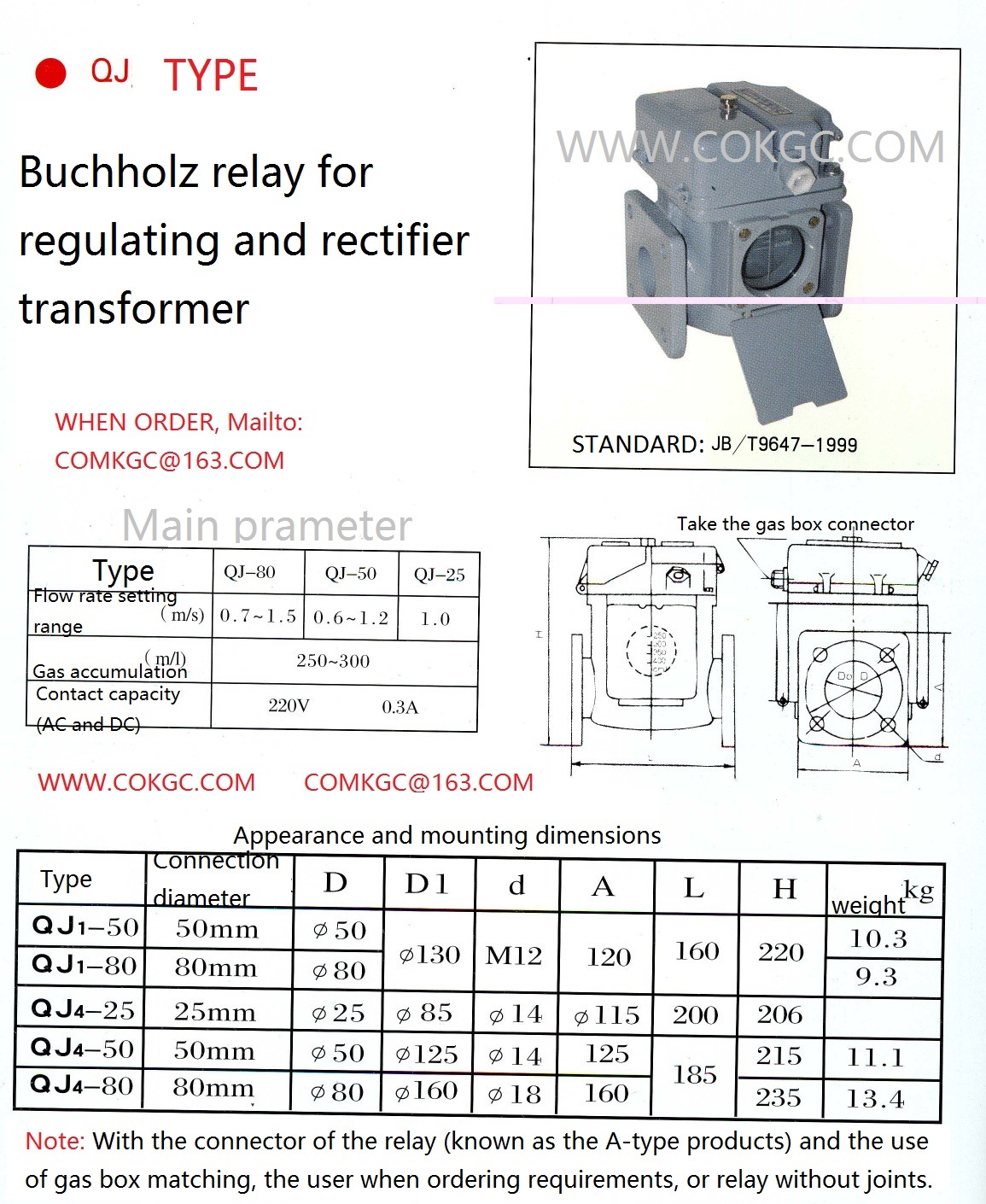

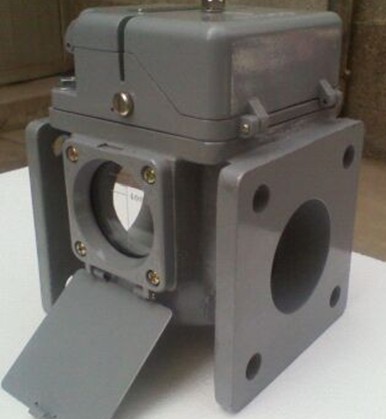

 QJ-80 Buchholz relay for regulating and rectifier transformer
ITEMS NAME  PHOTO/SPECIFICATION
QJ-80 Buchholz relay for regulating and rectifier transformer



Buchholz relay

QJ-80 Buchholz relay for regulating and rectifier transformer




Buchholz Relay

Buchholz Relay

GAS RELAY MODEL QJ: 12 – 80A/A
STANDARD JB/T9647 – 1999,
240V, 0.3A, No. 20 07 04611
KGC REMARKS:PIPE IS 5 METER)

Buchholz Relay

Buchholz Relay

China T/F Blue Phase
Type: QJ G 50 TH  80
Operating Temp. 30 ºC ~ 95 ºC
Diameter of connection Pipe:
Type: QJ – 50 QJ – 80
Pipe Dia (mm) 50 80
The volume of gas to actuate the signal contact is between 250 – 300 ml
Working V : AC 220 ~ 250V, DC: 110V
Working I : 0.3 A Cos Ø O.6
0.6 A T X 10-³ s



Buchholz Relay

Buchholz Relay

GAS RELAY MODEL QJ: 12 – 80A/A
STANDARD JB/T9647 – 1999,
240V, 0.3A, No. 20 07 04611



Buchholz Relay

Buchholz Relay

China T/F Blue Phase
Type: QJ G 50 TH  80
Operating Temp. 30 ºC ~ 95 ºC
Diameter of connection Pipe:
Type: QJ – 50 QJ – 80
Pipe Dia (mm) 50 80
The volume of gas to actuate the signal contact is between 250 – 300 ml
Working V : AC 220 ~ 250V, DC: 110V
Working I : 0.3 A Cos Ø O.6
0.6 A T X 10-³ s




Buchholz Relay

VEB ELECTROTCH NIK UND. GERAET – EAU MAGDE BURG, MADE IN GDR 1979 6.3K, TYPE: B.F 50/10-2,
TGL 15290, No.219156, 220V AC/DC 2A, BROT. DEGREE: IP44, CLIM. PROTECTION: THAI,
Temp. From: -30ºC------+100ºC
For T/F 2000—10,000 KVA



Buchholz Relay

GAS RELAY MODEL QJ: 12 – 80A/A
STANDARD JB/T9647 – 1999,
240V, 0.3A, No. 20 07 04611,

Buchholz Relay

Type: QJ G 50 TH
                    80
Operating Temp. 30 ºC ~ 95 ºC
Diameter of connection Pipe:
Type: QJ – 50 QJ – 80
Pipe Dia (mm) 50 80
The volume of gas to actuate the signal contact is between 250 – 300 ml
Working V : AC 220 ~ 250V, DC: 110V
Working I : 0.3 A Cos Ø O.6
0.6 A T X 10-³ s



Buchholz Relay

MFR: ACEC Charleroi
Buchholz Relay
Model: RBGP1
(According to the attached pictures)
Applicable for UN transformer 20 kV, 14.5 MW, Voltage Input: 2000 V, Voltage Out Put: 400 V, Current Input: 200 A



Buchholz Relay QJ Series

Buchholz Relay QJ Series,Model: QJ17-80 A TH
Contacts Capacity: AC / DC 220V 0.3 A & 1 A

Technical parameters: six column connection, two independent signal, single jump in,
Size: the installation of two parallel flange size: 160 mm, mounting holes distance: 130 mm, 8 hole M12,
Also: with type A QH1 A type 500 get air box, it take the trachea configuration size, please provide
thanks..



Buchholz Relay

Buchholz Relay - (QJ-80)    Qty:2







          Email For Order:  comkgc@163.com

Buchholz Relay - (QJ-80) Temperature: -30 to +90 ◦c Rated voltage: 220 V DC or AC Tube ID: Ø80 mm for QJ-80 Gas Volume for Actuating the Signal Contact: 250 to 300 cm³ Vibration-Proof Capability: 4-20 Hz Total Weight: 8 kg Apx. Oil Rush Speed when Trip Contact is Actuated: 0.7 – 1.5 m/s, set 1.0 m/s Before Delivery Contact Capacity: 220 VAC, 0.3 A Inductive Load (t ≤ 5×10³ s) 220 VDC, 0.3 A Inductive Load (t ≤ 5×10³ s)
  Buchholz Relay - (QJ-80) Temperature:    -30 to +90 ◦c Rated voltage:     220 V DC or AC Tube ID:     Ø80 mm for QJ-80 Gas Volume for Actuating the Signal Contact:  250 to 300 cm³ Vibration-Proof Capability:     4-20 Hz Total Weight:     8 kg Apx. Oil Rush Speed when Trip Contact is Actuated:   0.7 – 1.5 m/s, set 1.0 m/s      Before Delivery Contact Capacity:       220 VAC, 0.3 A Inductive Load (t ≤ 5×10³ s) 220 VDC,  0.3 A Inductive Load (t ≤ 5×10³ s)
